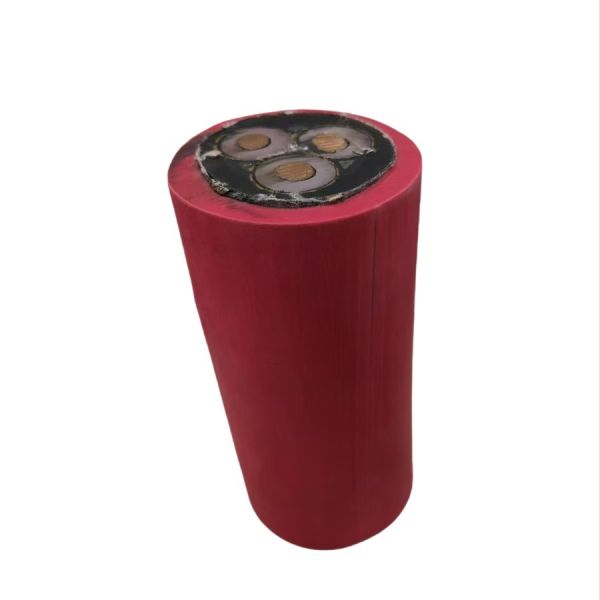

High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor

  • 1
  • 2
  • 3

MOQ : 100 meters

Price : $20.87-32.35/meters

Brand Name : KE FEI TE

Model Number : MYPTJ

Certification : MA,ISO9001

Place of Origin : CHONGQING

Payment Terms : L/C,D/P,D/A,T/T,Western Union,MoneyGram

Delivery Time : 4-12DAYS

Packaging Details : wooden drum，wooden pallet

Product Name : Mining Rubber Electrical Cable

warranty : 1 year

customized support : OEM

place of origin : China,Chongqing

brand name : KE FEI TE

model number : MYPTJ

type : Rubber cable

feature : Explosion-proof,oil resistance,wear resistance

power source : electrical cable

application : Electricity transmission for mining

Usage : Electric supplying

Packing : Wooden drum

MOQ : 100 meters

Voltage : 6/10KV

Conductor : Tinned Copper,Copper

Sheath : Rubber

Insulation : EPR

Application : Coal Mining Power Transmission

Contact Now

Product Overview
High Voltage Rubber Mining Cable

This product is the rubber sheath flexible cable series used in coal-mining. It is for rated voltage Uo/U 6/10KV .It's apply for power supplying connection of coal mining machine and similar equipment.

FEATURES AT A GLANCE
  • The rated power frequency voltage U0/U: 6/10Kv.
  • Permissible operating temperature:-35°C to 65°C.
  • The minimum bending radius is over 6 times of cable diameter
  • The allowed working temperature of the core is 65° C
  • Tinned copper wire can prevent REDOX reaction and produce patina; Increase heat dissipation; Improved conductivity, improved wire performance.
  • Cable Feature: High Flexible, waterproof,tensile resistant, explosion-proof,Wear-resistant, oil-resistant and corrosion-resistant.
  • It has a metal shielding layer, which can effectively shield external electromagnetic interference, prevent the influence of electromagnetic signals on the internal power transmission of the cable, and also play a grounding protection role.
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
PRODUCT VIEWS
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Front elevation
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Left elevation
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Top view
PRODUCT SPECIFICATIONS
No Item Data
1 Insulation EPR/EPDM
2 Sheath Rubber
3 Voltage 6/10Kv
4 Conductor Operation Temperature 65℃
5 Shield Metal shield
6 Conductor Copper,Tinned Copper
7 Filler Rubber
8 Feature Cold Resistance,oil resistance,tensile resistance
SALES AND SERVICE NETWORK
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Successful Project
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Project in Thailand
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Project in India
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
Project in Russia
SIMILAR PRODUCTS
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
High Voltage 6/10KV Underground Mining Cable With Tinned Copper Conductor
FAQ
1. what is our payment term ?

Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2. what is the lead time ?

The lead time usually is 10 - 30 working days.

3. what is the package of the cable ?

The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.

4. Could we provide the free sample for customer ?

Sure, we provide the free sample for customer to checking.
